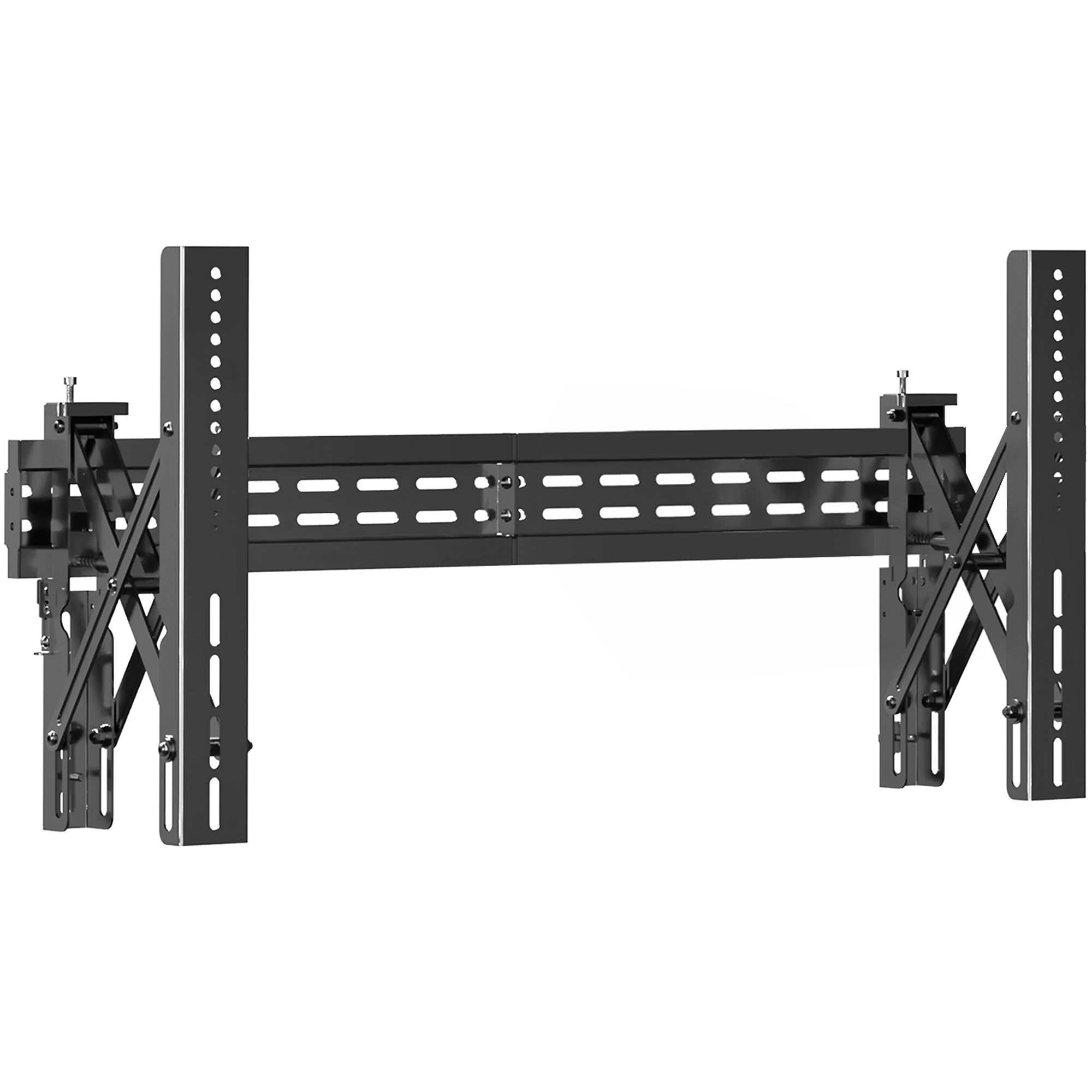

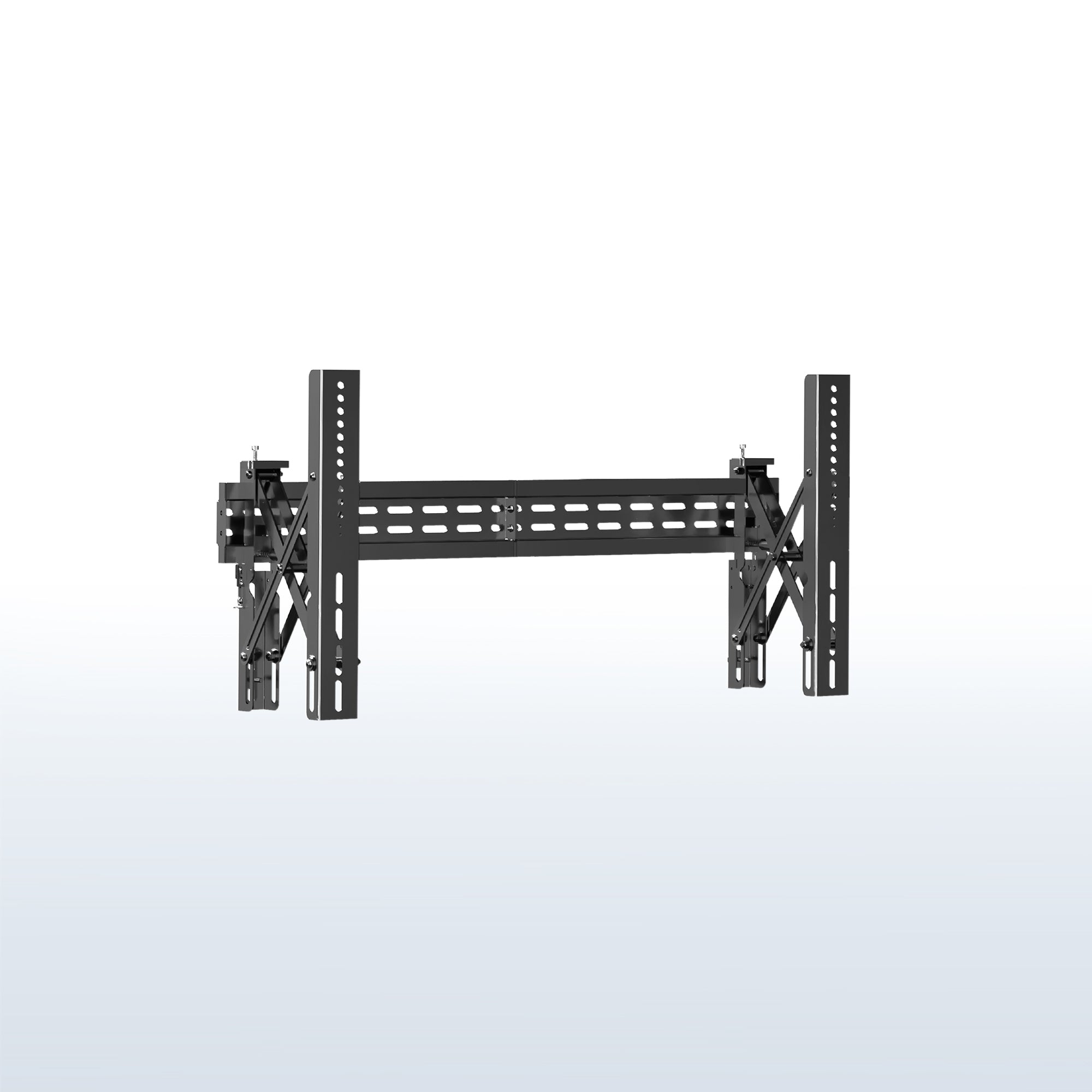

VESA Wall Mount for 37” to 90” TVs

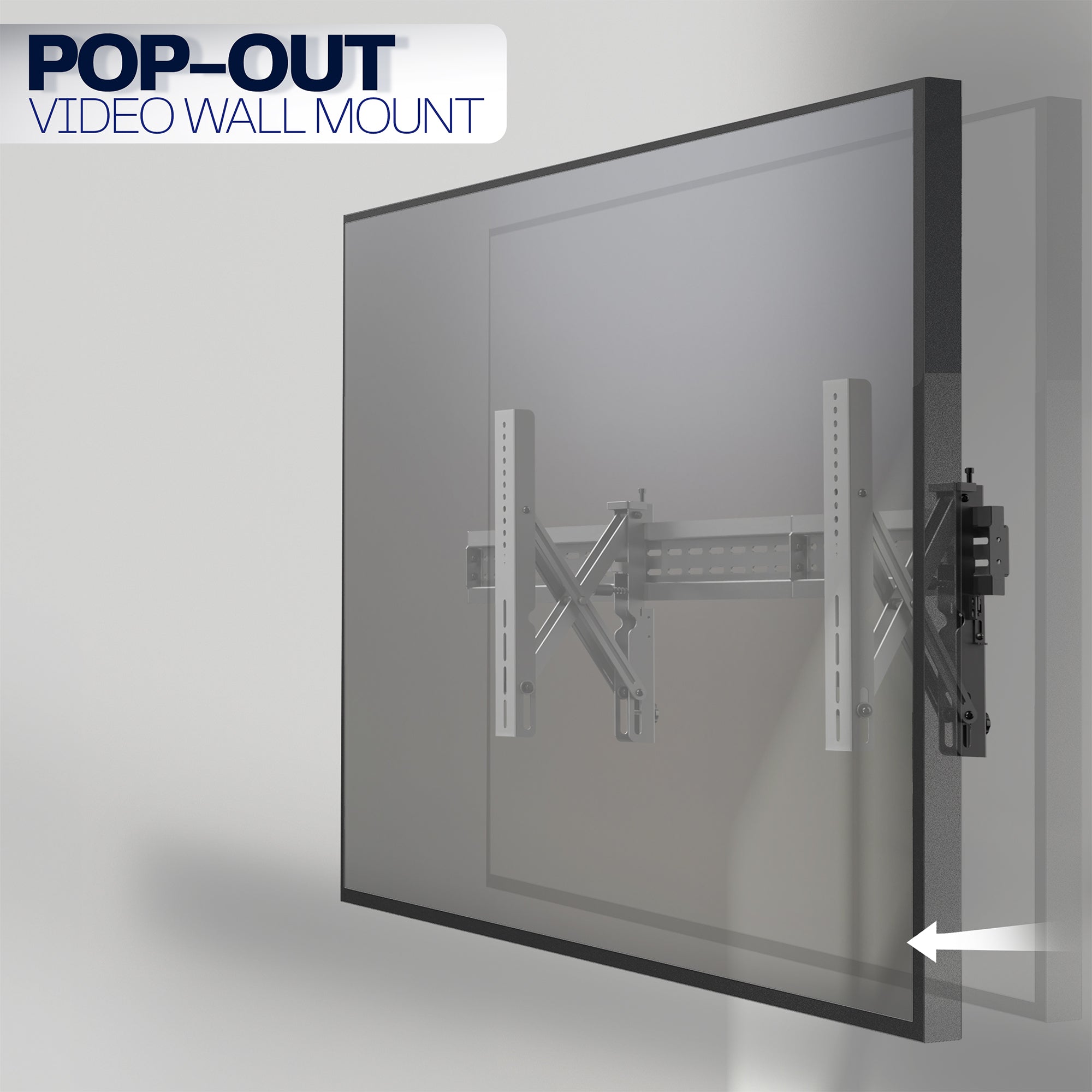

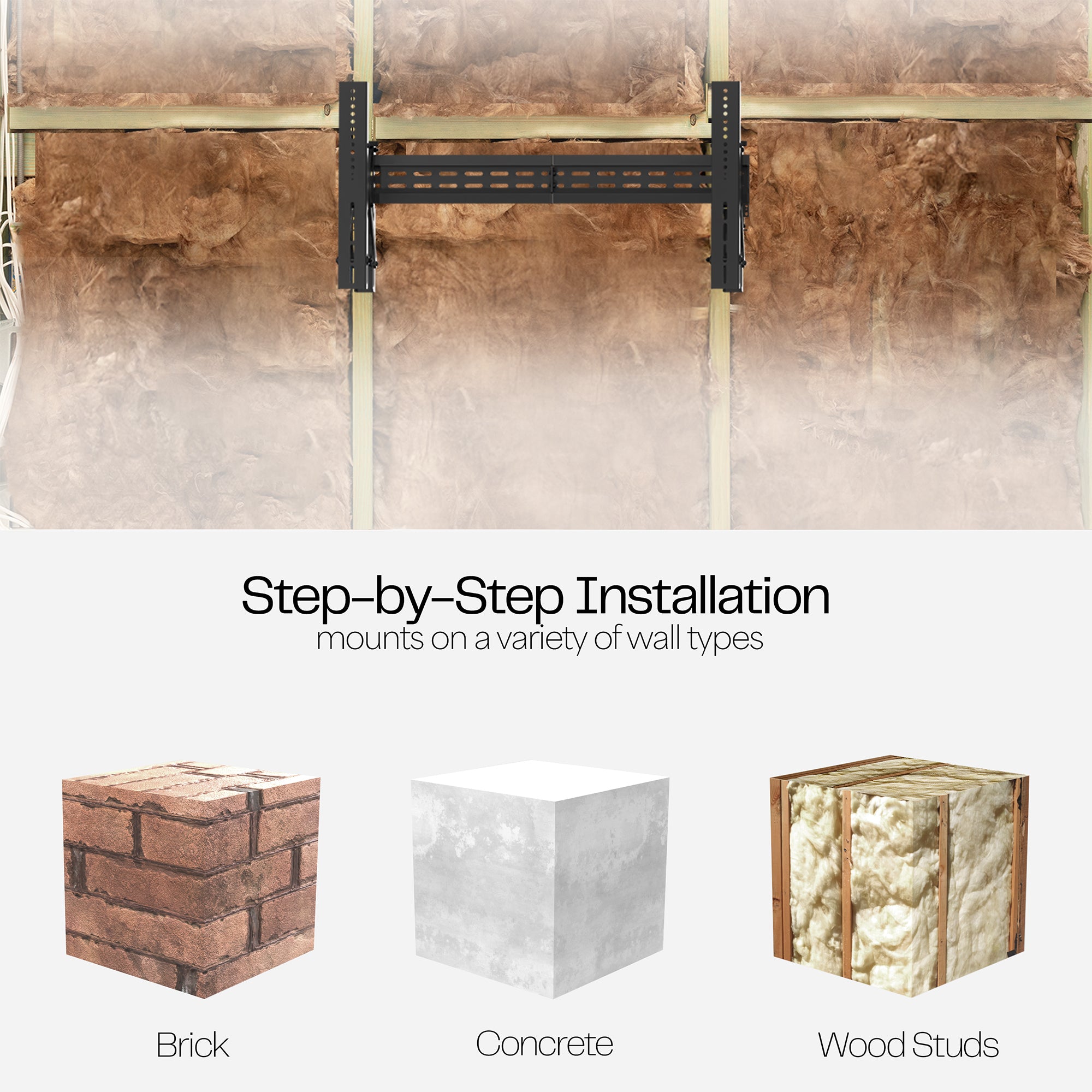

Create an impressive TV display with the Pop-Out Video Wall Mount (MOUNT-VW65-1) from VIVO! Designed for 37” to 90” TVs weighing up to 154 lbs (when installed to concrete), this mount will hold your screen safe and secure. The pop-out VESA brackets let you access ports and install hardware after the screen is mounted, and micro-adjustments provide screen-leveling to get your TV perfectly positioned just how you want it. Hardware is provided for both wood stud and concrete installation.

• TV Sizes: 37” to 90”
• VESA Standard: 100x100mm, 200x100mm, 200x200mm, 300x200mm, 400x200mm, 300x300mm, 400x300mm, 400x400mm, 600x400mm
• Weight Capacity for Concrete Applications: 154 lbs
• Weight Capacity for Wood Stud Applications: 110 lbs

• Material: Steel

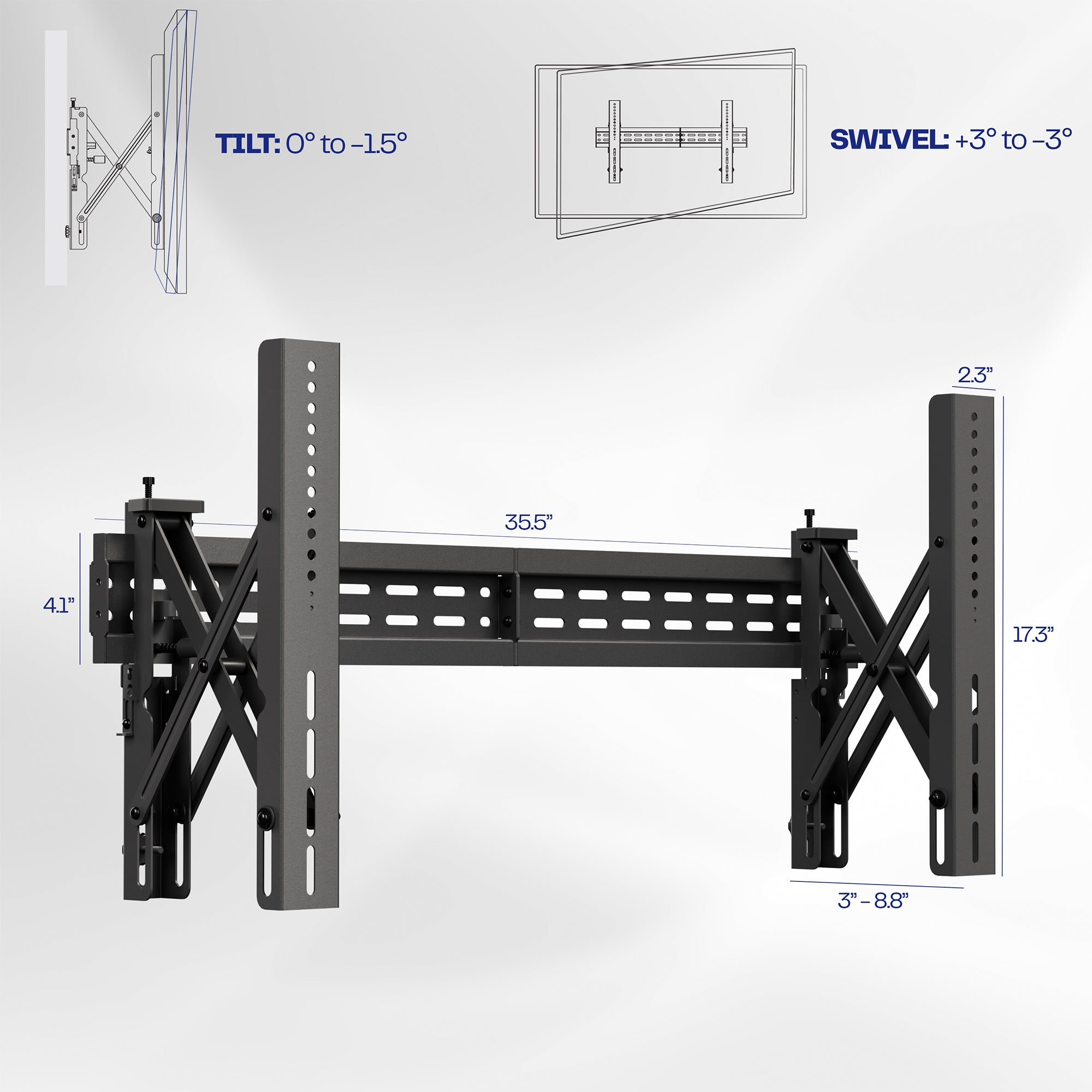

• Wall Bracket Dimensions: 35.5” x 1” x 4.1”
• VESA Bracket Dimensions: 17.3” x 2.3” x (3” to 8.8”)

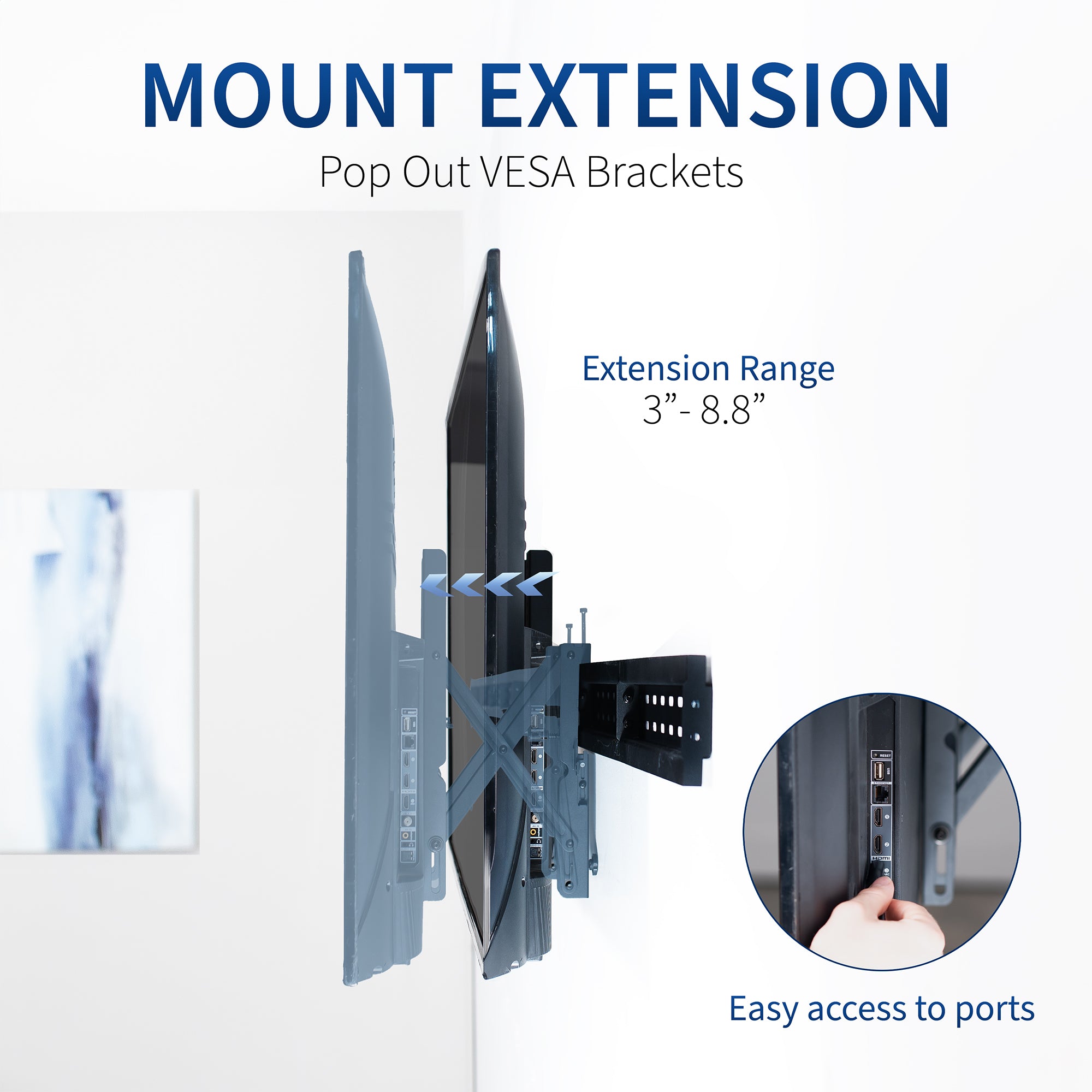

• VESA Bracket Extension: 3” to 8.8”
• Total Product Dimensions: 35.5” x 8.7” x 17.3”
• Tilt: 0° to -1.5° (via adjustment knobs)
• Swivel: +3° to -3° (for screen leveling)

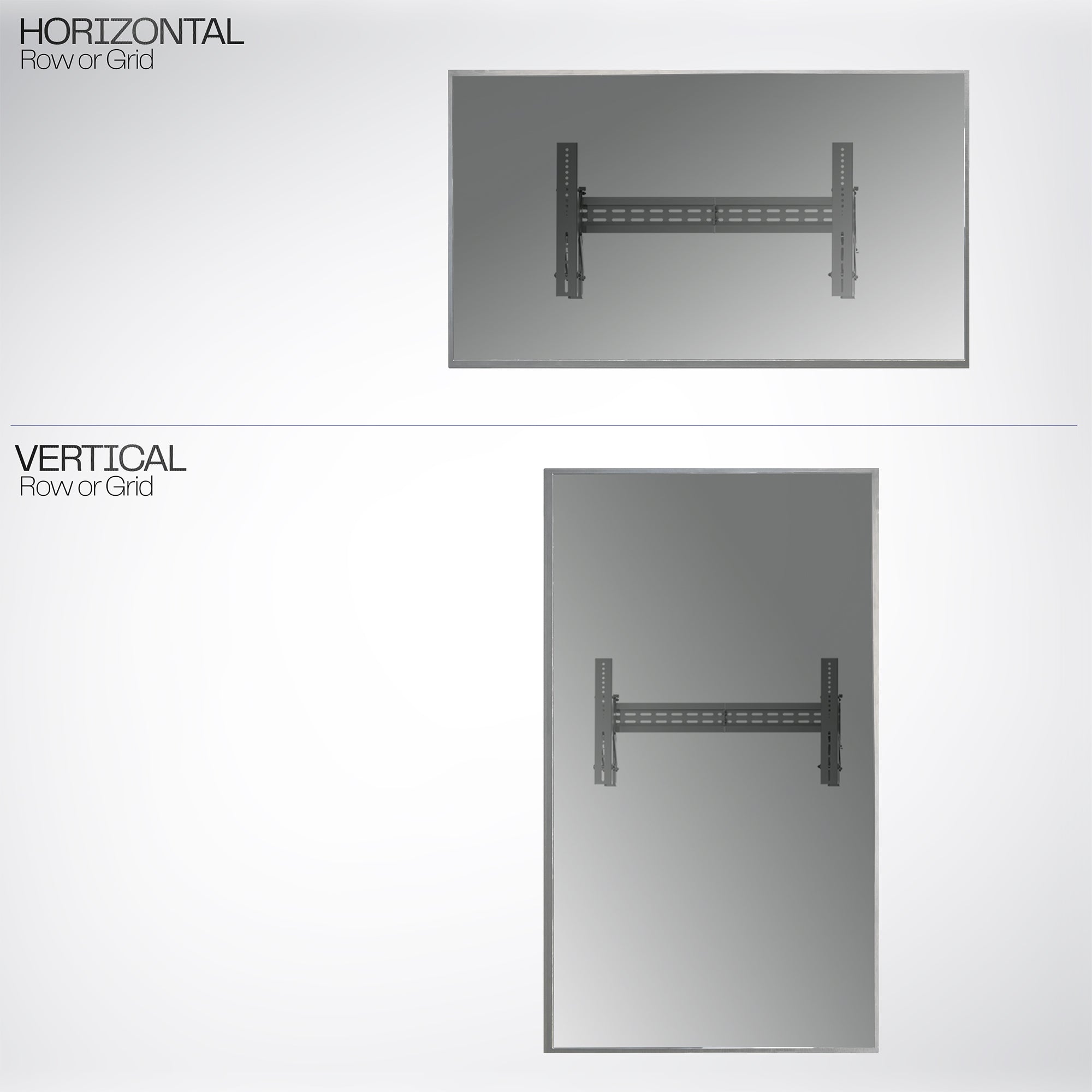

• Screen Orientation: Portrait or Landscape

• https://cdn.shopify.com/s/files/1/1190/2562/files/MOUNT-VW65-1_REV1_online.pdf?v=1741030904
