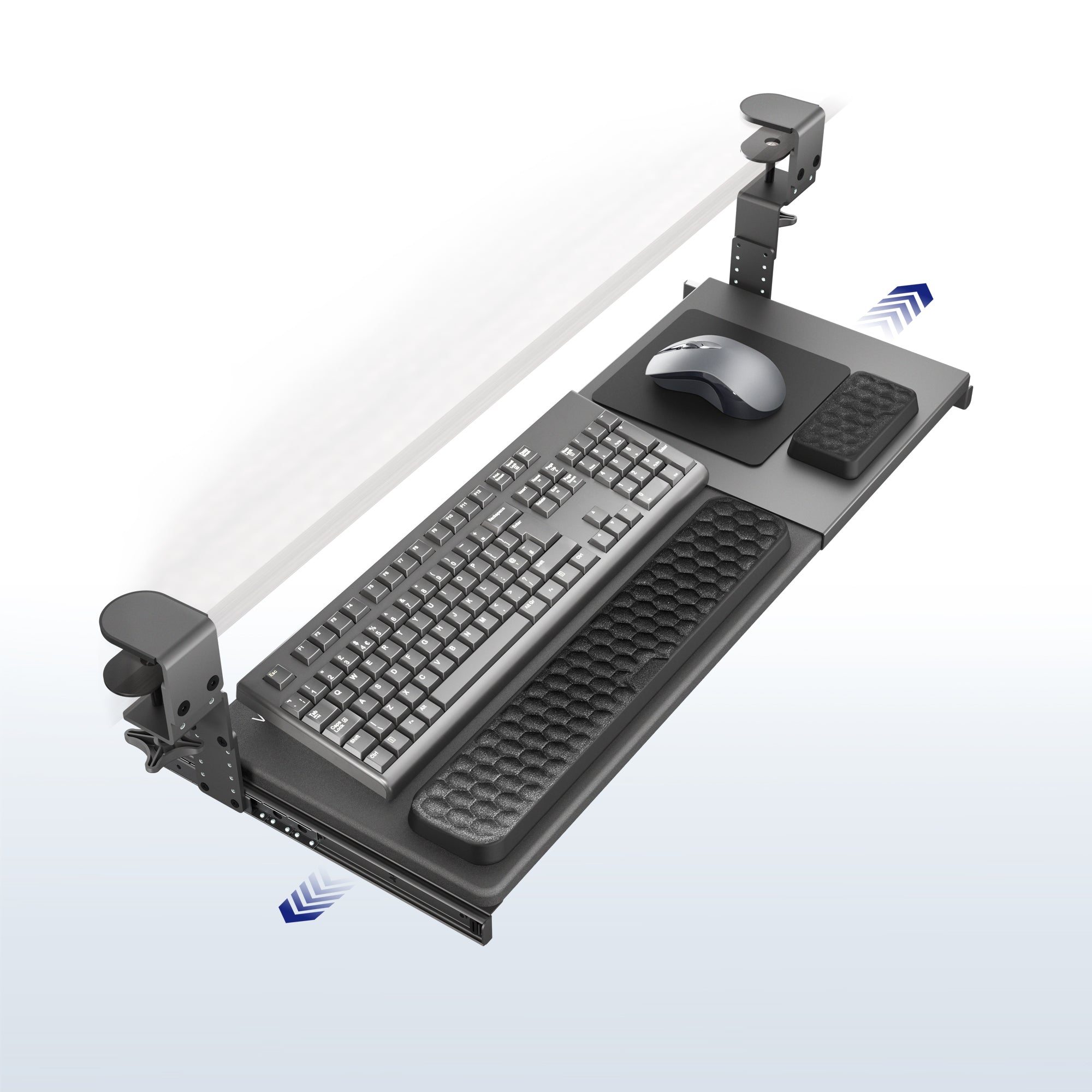

Clamp-on Height & Width Adjustable Keyboard Tray

The VIVO MOUNT-KBST1 is a large, height- and width-adjustable under-desk keyboard tray designed to promote a more ergonomic and organized workspace. This innovative unit features a split platform, with dimensions ranging from 22.5" to 30" in width (28.5" to 36" including the clamps) and 11" in depth. It is capable of supporting a keyboard, mouse, and accessories, with a maximum weight capacity of 11 lbs. The system utilizes a straightforward C-clamp attachment mechanism, ensuring a secure, non-damaging installation on desktops up to 3.4" thick. A smooth gliding track facilitates easy movement (extending 8.8" to 10"), and the tray offers 2.4" of height adjustability across five set points, allowing users to achieve a comfortable and healthy typing angle. The tray includes a keyboard wrist pad, a mouse pad, and a mouse wrist rest, offering a complete set of accessories for various keyboard and mouse setups.

• Universal Design: Fits most keyboards and mice on the market
• Compatible Desktop Thickness: 0.5” to 3.4”
• Weight Capacity: 11 lbs

• Material: Steel, MDF Board
• Tray Dimensions: 22.5” to 30” (28.5” to 36” including clamps) x 11”
• Tray Thickness: 0.6”
• Keyboard Wrist Pad Dimensions: 17.5” x 3.3” x 0.8”
• Mouse Wrist Pad Dimensions: 5.1” x 2.8” x 0.8”
• Mouse Pad Dimensions: 7” x 7”
• Size of Adjustable Metal Section: 11” x 11.1”
• Extension: Tray slides out a total of 8.8” to 10’’ from the desk
• Height Clearance/Orientation: Tray sits 2” to 6.8” below the desk surface
• Side Bracket Height Adjustment: 2.4” (5 height settings with 0.6” between each setting)
• Track Length: 12.3”
• Clamp Height Adjustment: 1.57”

• Assembly Manual PDF
